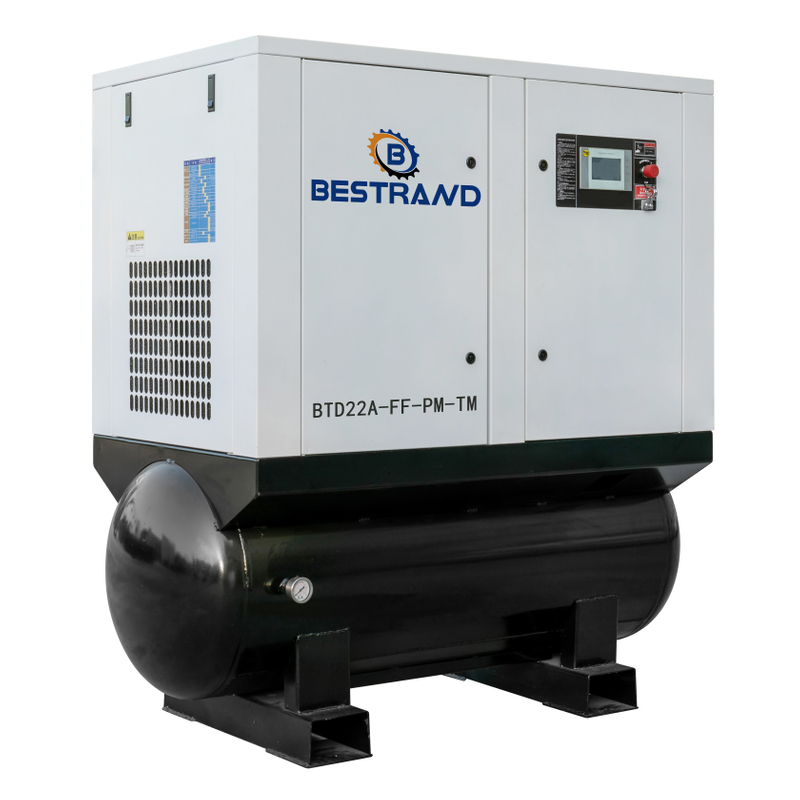

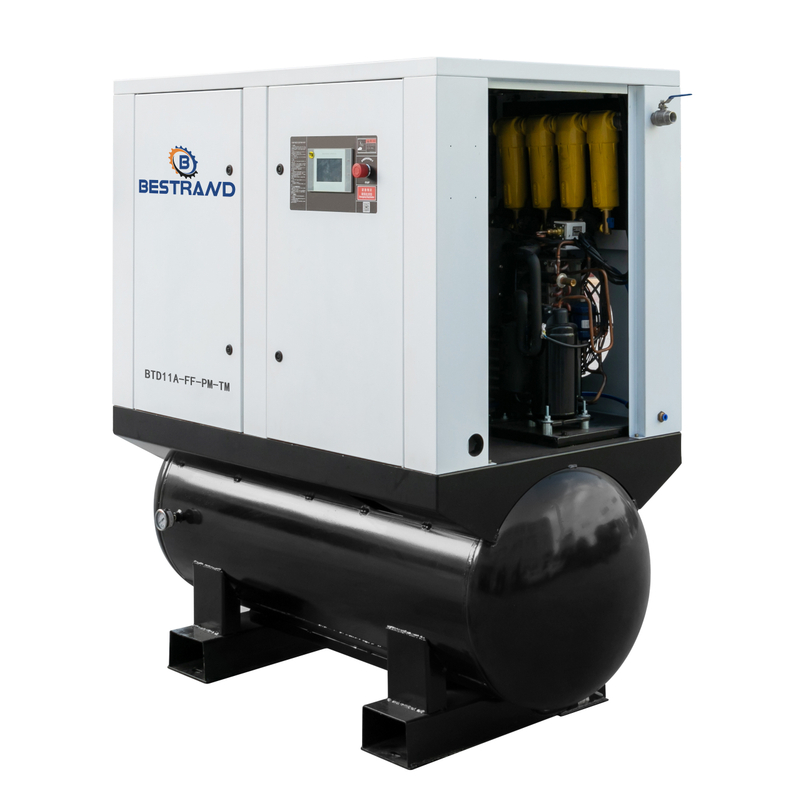

Integration (PM) Type Screw Air Compressor
The displacement volume of the integration type unit series of BTD 5~22 A - TM with the cooling and drying machine:0.7-3.5m3,pressure:7-13bar,motor power:5KW-22KW.The cooling and drying machine is set up in the case of
the compressor , and there is no extra room and extra installation cost for the cooling and drying machine and it can be connected by all the pipes and interior cables .The series of the compressor enjoys the com- pact structure and little area. Its ussage is very simple and convenient, and t the air pipe can be used only when the power source is tur rned, with no need of allocating the cooling and drying machine and the pipeline again. The overall performance design enjoys incomparable advantages;
If necessary, the operation of the compressor can be set up as the way without the cooling and drying machine, and it can be fulfilled by the existing and simple bypasses in the system. If there is a failure for the cooling and drying machine. the simple bypass can guarantee the continuous operation of the compressor;
The whirlwind type separation o fair and water equipped with the condensed liquid should be set up in front of
the cooling and drying machine, and the majority of the condensed liquid will be removed before the cooling and drying machine. The cooling and drying machine is equipped with an electrical condensed liquid expeller of the liquid level control with no loss, also as the standard equipment,he operation control and inspection display of the cooling and drying machine will be clearly shown on the control panel of the compressor. The daily maintenance of the cooling and drying machine and the compressor is very convenient and will not influence each other.
Integration (PM) Type Screw Air Compressor
The displacement volume of the integration type unit series of BTD 5~22 A - TM with the cooling and drying machine:0.7-3.5m3,pressure:7-13bar,motor power:5KW-22KW.The cooling and drying machine is set up in the case of the compressor , and there is no extra room and extra installation cost for the cooling and drying machine and it can be connected by all the pipes and interior cables .The series of the compressor enjoys the com- pact structure and little area. Its ussage is very simple and convenient, and t the air pipe can be used only when the power source is tur rned, with no need of allocating the cooling and drying machine and the pipeline again. The overall performance design enjoys incomparable advantages;
If necessary, the operation of the compressor can be set up as the way without the cooling and drying machine, and it can be fulfilled by the existing and simple bypasses in the system. If there is a failure for the cooling and drying machine. the simple bypass can guarantee the continuous operation of the compressor;
The whirlwind type separation o fair and water equipped with the condensed liquid should be set up in front of the cooling and drying machine, and the majority of the condensed liquid will be removed before the cooling and drying machine. The cooling and drying machine is equipped with an electrical condensed liquid expeller of the liquid level control with no loss, also as the standard equipment,he operation control and inspection display of the cooling and drying machine will be clearly shown on the control panel of the compressor. The daily maintenance of the cooling and drying machine and the compressor is very convenient and will not influence each other.
